Products information

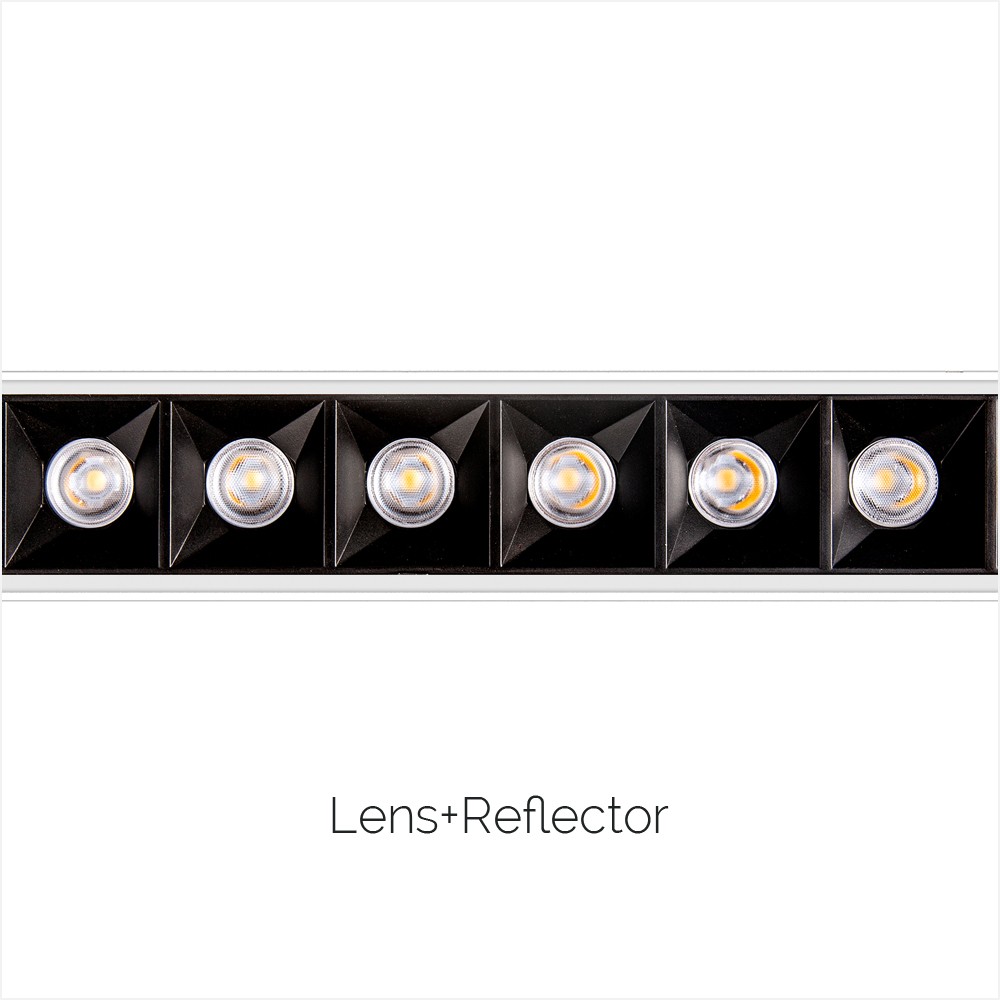

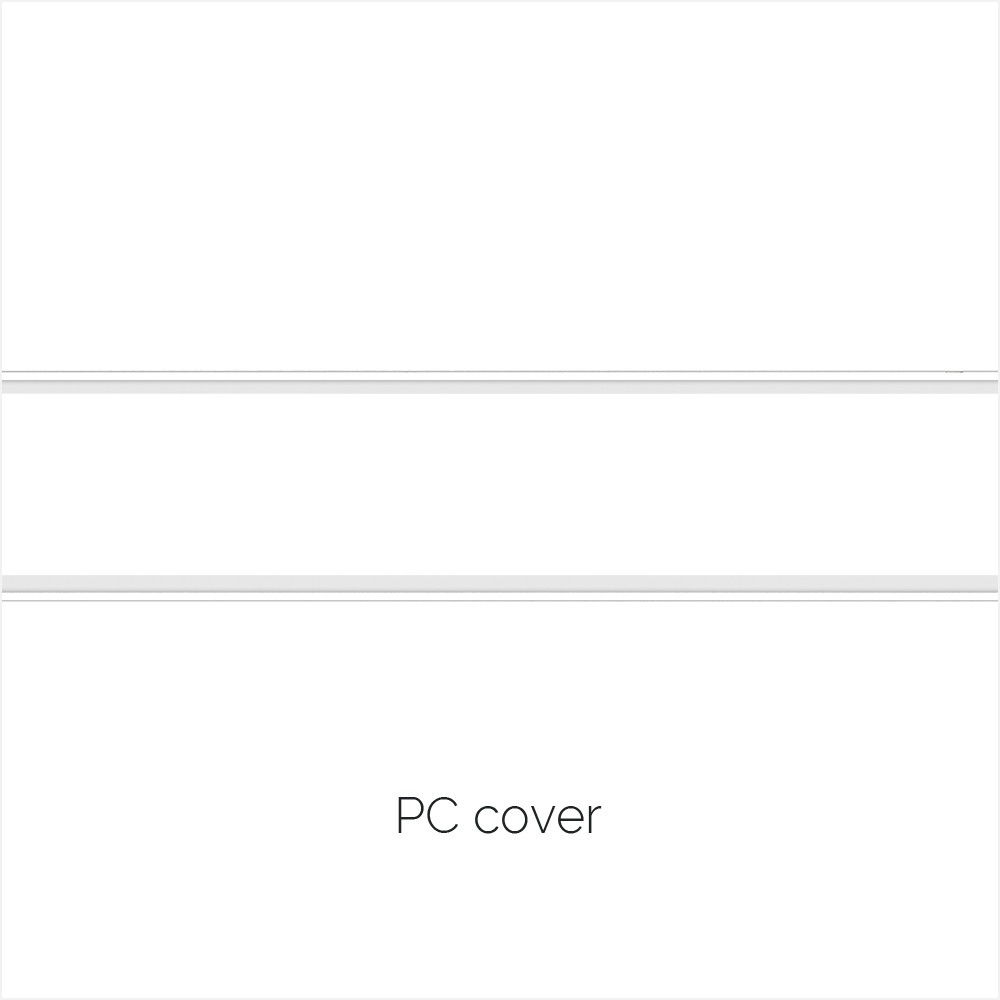

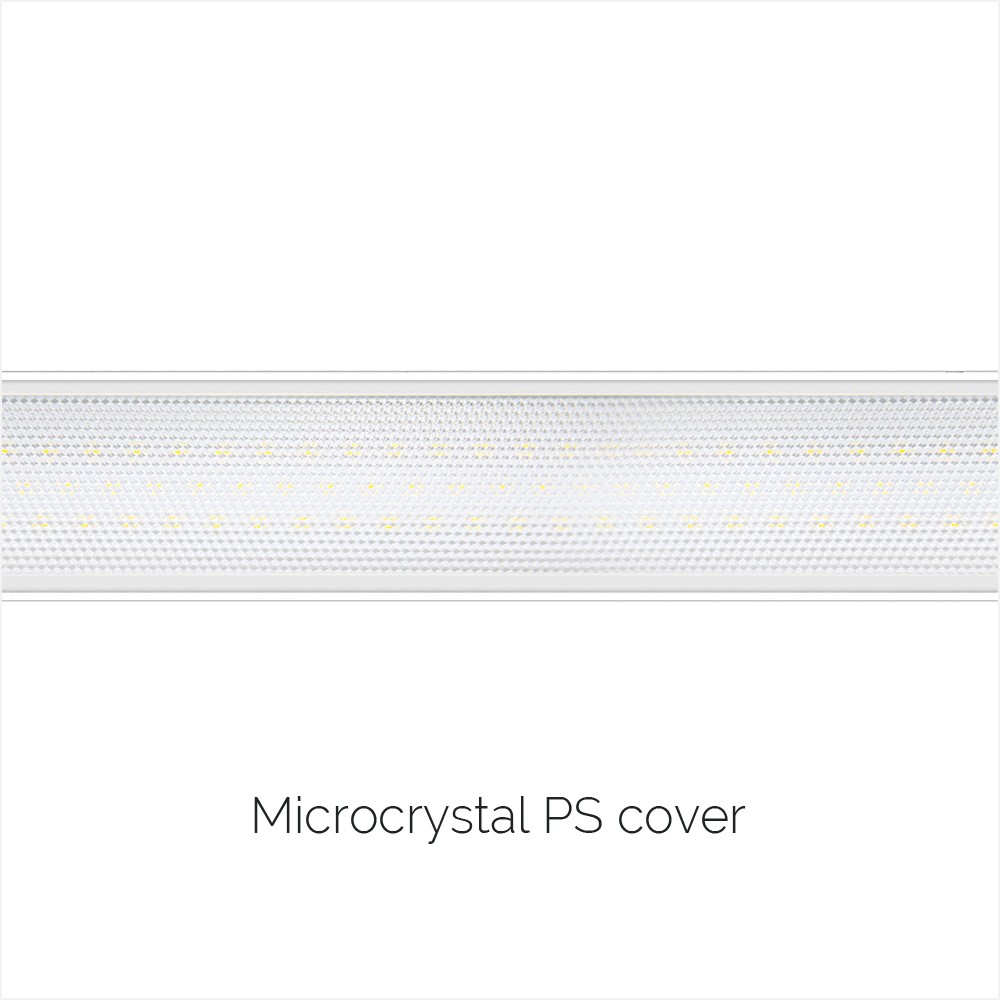

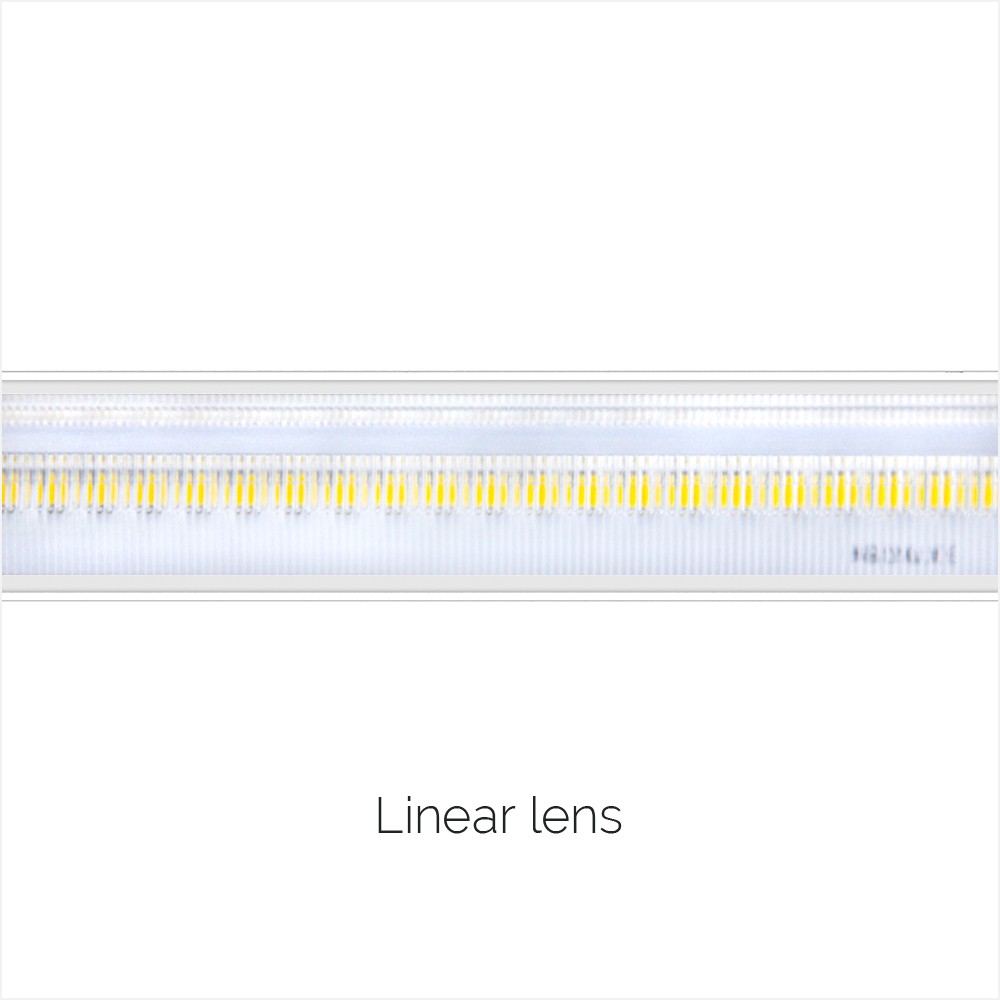

Designed with LOW UGR optical accessories especially for office lighting, Totally 4 different optical parts for option, ①.Lens+reflector ②.Microcrystal PS cover ③.Linear lens ④. Frost PC cover, 7 types of beam angle: ①.100°with frost pc cover ②~③. 50° / 35*70° with reflector; ④~⑦.60° / 90° / Asymmetric / Double-asymmetric with optic lens . Also 2 types of light distribution, direct or indirect/direct for option. Consisting of individual luminaries or arranged as continuous rows, can be easily and precisely aligned.





Downlaods

38mm LITAN Linear Fixtures(图1)Specification for LED Linear Light - Liris Lighting - 2020


Product features


Products specifications

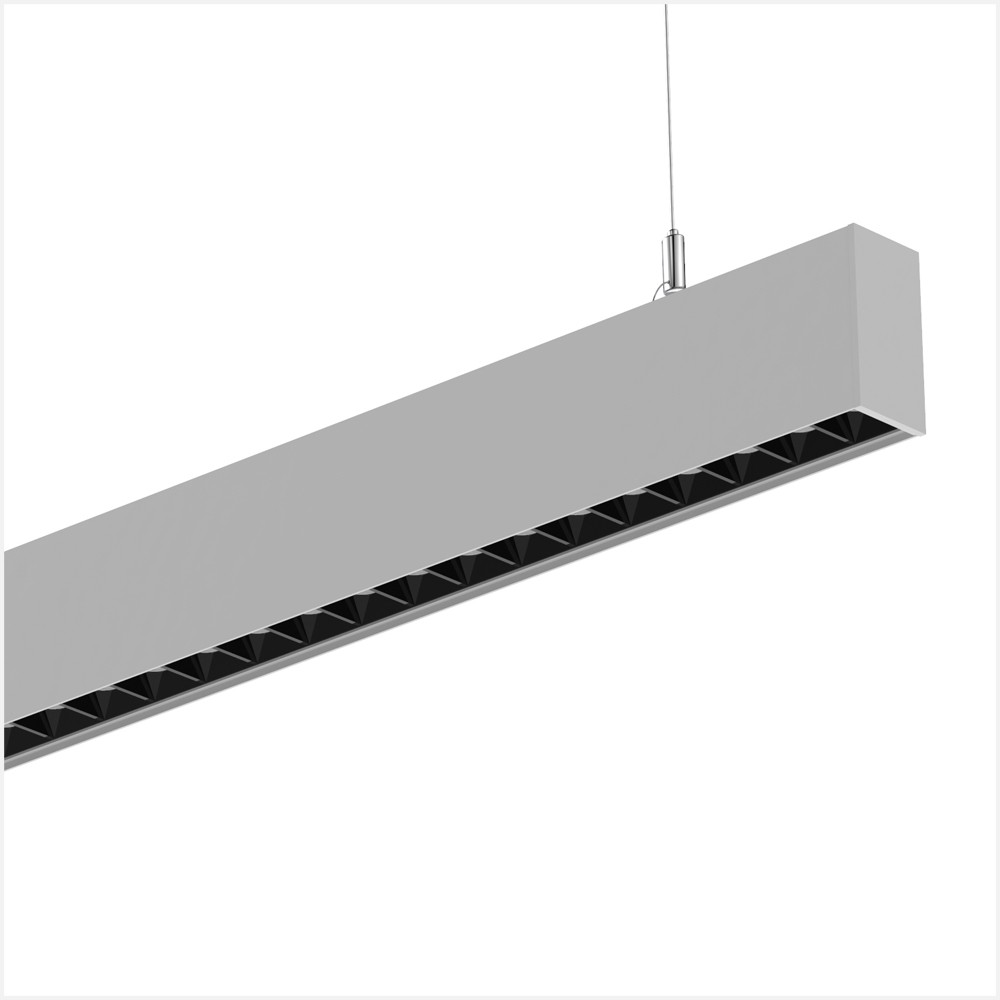

Product SeriesLITAN Pendant Linear Slot Fixtures
Input voltage100~240V AC 50/60Hz
LED TypeHigh brightness 3030 SMD LED
Efficacy100~130lm/w
Power range30~120W
Light distributionDirect or Indirect/direct
DimensionW38mmxH75mmxL1120/1192/1438/2870mm
